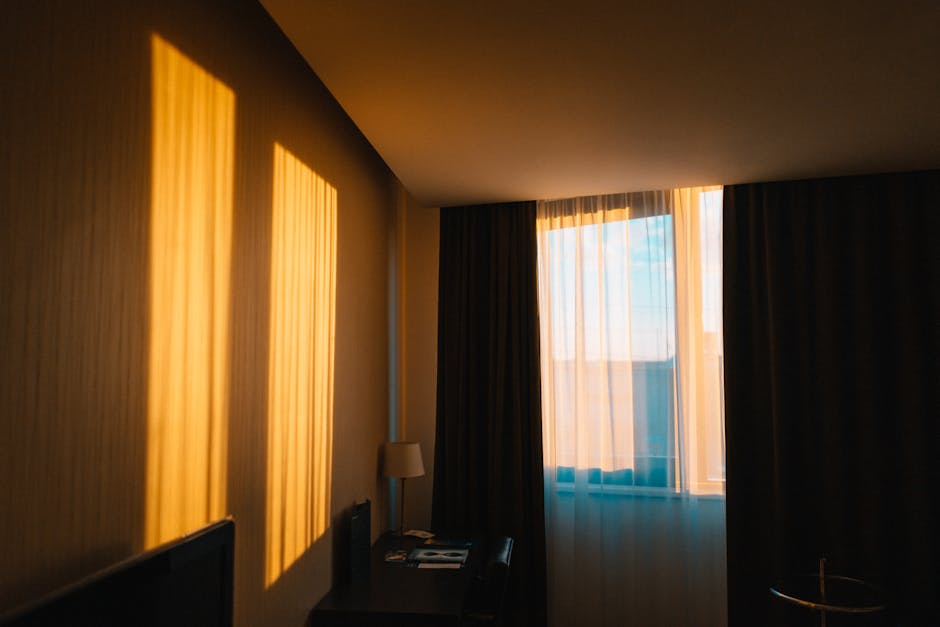

Why Accurate Measurements Matter for Blackout Curtains
Blackout curtains are designed to block external light, enhance privacy, and improve energy efficiency. However, even the highest-quality blackout fabric will fail to deliver optimal performance if the curtains are improperly measured. Gaps along the edges allow light to seep through, defeating the purpose of blackout curtains. Accurate measurements ensure a snug fit, maximizing light blockage and thermal insulation. This guide will walk you through every step, from selecting the right hardware to calculating final dimensions, so you can achieve professional-grade results.

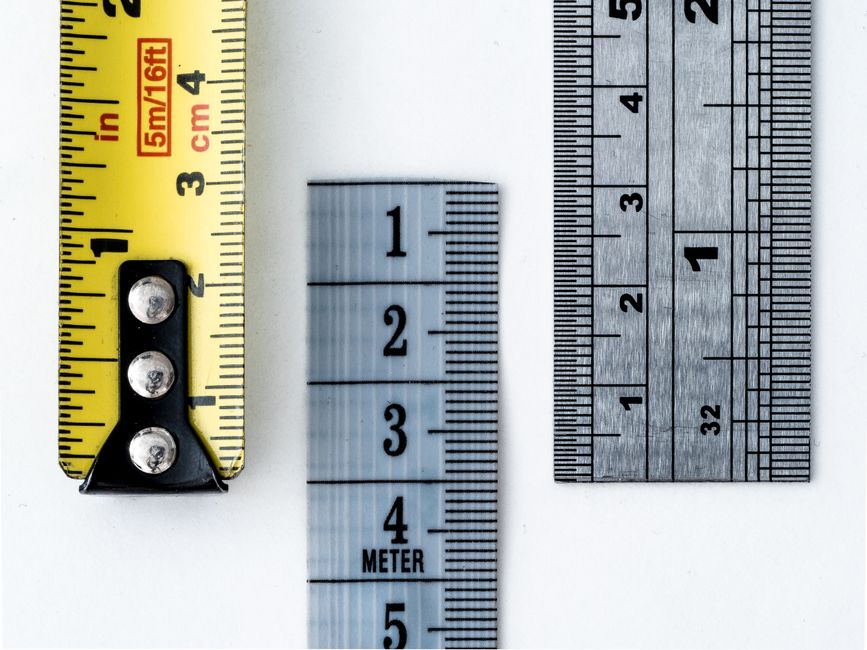

Tools You Will Need
Before starting, gather the following tools:
- Steel measuring tape (fabric tapes can stretch over time)
- Pencil and notepad (or a digital note-taking app)
- Step stool or ladder (for tall windows)
- Level (to ensure straight lines)
- Calculator (for width and length adjustments)
Using a steel tape is crucial because fabric tapes may not provide the precision needed for window treatments. Also, always measure in inches or centimeters – whichever you prefer – but keep units consistent throughout.

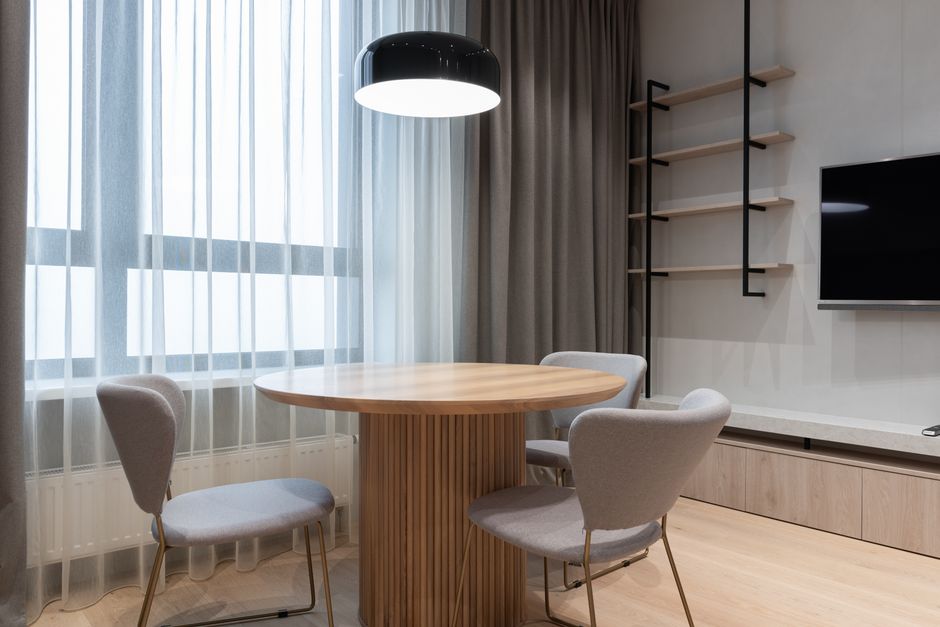

Deciding on Mount Type: Inside vs. Outside
The first decision is whether to mount the curtains inside the window frame (inside mount) or on the wall above the frame (outside mount). Each has distinct advantages:
Inside Mount
An inside mount places the curtain rod inside the window recess, resulting in a clean, built-in look. This method works best if you have deep window frames and want to showcase architectural details. However, because the curtain sits inside the frame, you must measure the exact width and height of the opening. Even a small error can cause gaps.
Outside Mount
Outside mounting is more forgiving and often recommended for blackout curtains because it allows you to overlap the window frame, minimizing light leaks. The curtain rod extends beyond the window on all sides. This method also makes the window appear larger. For blackout purposes, outside mount is generally preferred unless you have very deep reveals and can use a track system.
How to Measure for Inside Mount Blackout Curtains
Follow these steps for an inside mount:
- Measure the width in three places: Measure the top, middle, and bottom of the window frame horizontally. Record the smallest measurement to ensure the curtain width fits easily. Do not subtract any extra – the curtains should be ordered to the exact width or slightly less (1/4 inch smaller) if needed.
- Measure the height in three places: Measure from the top of the frame (where the rod will sit) to the sill (or desired length). Measure left, center, and right. Again, use the smallest measurement to avoid bunching.
- Check for obstacles: Ensure the window opens and closes freely without interfering with the curtain rod. For blackout curtains, you might need to install a track system that sits close to the glass.
For blackout effectiveness, inside mount curtains should have a tight fit along the sides. Some manufacturers offer tension rods or side channels to further block light. If you can, choose a curtain track that mounts to the ceiling of the recess for a seamless seal.
How to Measure for Outside Mount Blackout Curtains
Outside mount gives you more flexibility and is easier to achieve full blackout. Here’s the process:
- Determine overlap: To prevent light from sneaking around the edges, plan to extend the rod at least 3–6 inches beyond the window frame on each side. For wider windows, add more. The general formula: Window width + (overlap × 2).
- Measure width for the rod: Mark the desired rod placement on the wall. Measure the total length from one end to the other (including finials if they are decorative but non-functional). For blackout curtains, the rod should be the width of the window plus at least 6 inches on each side (12 inches total).
- Measure height for the rod placement: Hang the rod 4–6 inches above the window frame (or higher for a dramatic look). The higher the rod, the more light you can block from above. Standard is 4 inches above the frame.
- Measure curtain length: Decide how low you want the curtains to fall: to the sill (sill length), below the sill (apron length), or to the floor. For blackout, floor length is ideal. Measure from the top of the rod (or the curtain ring/header) down to the desired end. Add about 1 inch for clearance if the floor is uneven, but for a puddle effect, add 2–4 inches.
- Calculate final curtain width: To ensure fullness and proper light blocking, the total curtain panel width should be 1.5 to 3 times the window width. For blackout curtains, 2 to 2.5 times is recommended. For example, if your window is 48 inches wide, order panels that total 96–120 inches wide. Divide by the width of each panel to determine how many panels you need.
Special Considerations for Blackout Fabrics
Blackout curtains are typically heavier and have a coated backing. This affects how they hang and how much clearance you need. Consider the following:
- Rod sturdiness: Choose a heavy-duty rod that can support the weight of blackout curtains – especially if they are lined.
- Header type: For maximum light blockage, use a rod pocket or back-tab style that pushes the fabric close to the rod. Grommet tops allow some light through the top, but you can use a valance to cover it.
- Thermal lining: Many blackout curtains also have thermal insulation. Ensure the fabric doesn’t touch heaters or radiators.
- Cleaning accessibility: Since blackout curtains attract dust, consider ease of removal for cleaning.
Common Mistakes and How to Avoid Them
| Mistake | Consequence | Solution |
|---|---|---|
| Not measuring in three places | Curtains may be too wide or narrow due to uneven frames | Always take multiple measurements and use the smallest |
| Insufficient overlap for outside mount | Light leaks around edges | Extend rod at least 6 inches beyond each side |
| Ordering exact window width for outside mount | Curtains appear skimpy and don't cover edges | Order total width 2–2.5x window width |
| Ignoring rod placement height | Light enters from above | Mount rod 4–6 inches above window |
| Forgetting to account for curtain header | Curtains hang too high or low | Measure from rod's designated hang point (e.g., top of grommet hole) |
Measuring for Different Curtain Styles
Rod Pocket Curtains
Rod pocket curtains have a sewn-in tube where the rod slides through. For these, the pocket diameter must be larger than the rod diameter (add 1/2 to 1 inch). When measuring length, start from the top of the rod (not the pocket's top) to the bottom hem. Common mistake: measuring from the top of the pocket, which leaves the curtain hanging lower than intended.
Grommet Curtains
Grommet curtains have metal rings. The rod passes through them. For blackout, consider the space between the top grommet and the rod – usually 1–2 inches of fabric above the rod can be a light leak. Choose a valance or ensure the top is covered. When measuring length, measure from the top of the rod through the grommet to the bottom.
Pleated Curtains
Pleated curtains (pinch pleat, goblet, etc.) are often on hooks. The rod is placed on brackets, and the curtain is hung from rings. The width calculation must include the pleats; usually, the curtain itself is narrower than the hem width due to gathers. For blackout, pleated curtains may have gaps between pleats; consider an interlining. Measure from the ring's eye to the desired bottom.
Step-by-Step Measurement Summary
- Choose mount type (inside or outside).
- For inside mount: measure width and height in 3 spots, use smallest.
- For outside mount: decide overlap (6+ inches each side), measure rod width accordingly.
- Measure height: rod above window (4–6 inches), then length from rod to floor/sill.
- Calculate curtain panel width: window width × 2 to 2.5.
- Check hardware: rod diameter, bracket depth, header type.
- Order samples or check fabric weight if available.
Frequently Asked Questions
Can I use inside mount for fully blackout?
Yes, but only if you use a track system that hugs the window frame tightly, or add side tracks (like those used for projector screens). Otherwise, some light will leak through the top and bottom gaps.
What if my window is not perfectly rectangular?
For arched or angled windows, you may need custom measurements. In that case, consult a professional or use a template. For standard windows, the three-point measurement method handles minor irregularities.
Should I measure for curtains before or after painting?
After painting and after any renovation that changes the window dimensions. Ideally, measure after the room is complete to avoid changes.
Conclusion
Accurate measurements are the foundation of effective blackout curtains. Whether you opt for an inside mount or outside mount, taking the time to measure carefully – and considering the unique properties of blackout fabrics – will ensure you get the best light-blocking performance. Remember the simple rule: measure twice, order once. Follow this guide, and your room will become a dark, comfortable sanctuary.
